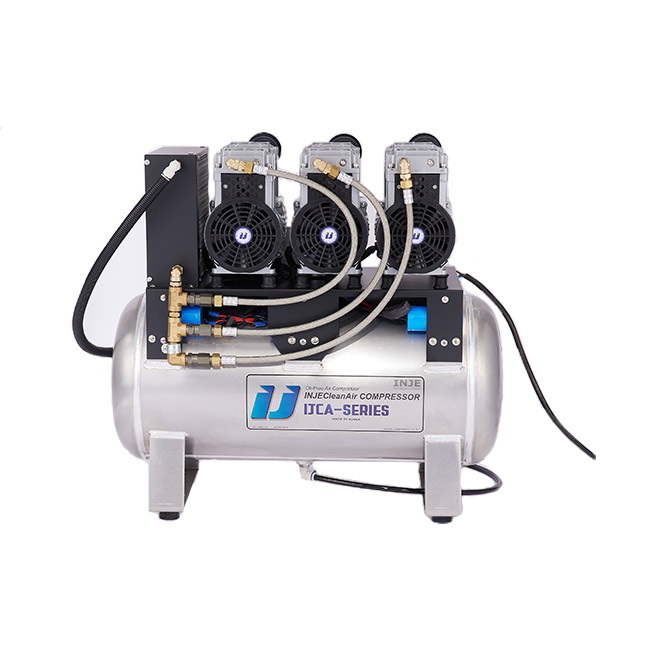

SAC-IJ3HP

SAC-IJ3HP

For up to six chairs and five users

Compressor Specifications

  • Oil-free reciprocating method
  • Air supply : 420L/min (1Mpa=120L/min)
  • Set control pressure : 6~8 bar
  • Maximum pressure : 10 bar
  • RPM : 1740 RPM
  • Tank capacity : 13 gallons
  • Power : 220V 60Hz&50Hz
  • Power consumption : 2400W
  • Current consumption : 10.9A
  • Dimension : 27″(L) X 16″(W) X 26″(H)
  • Weight : 121 lbs.
  • Noise : 68dB
  • IJCA-DRY

Product Notes

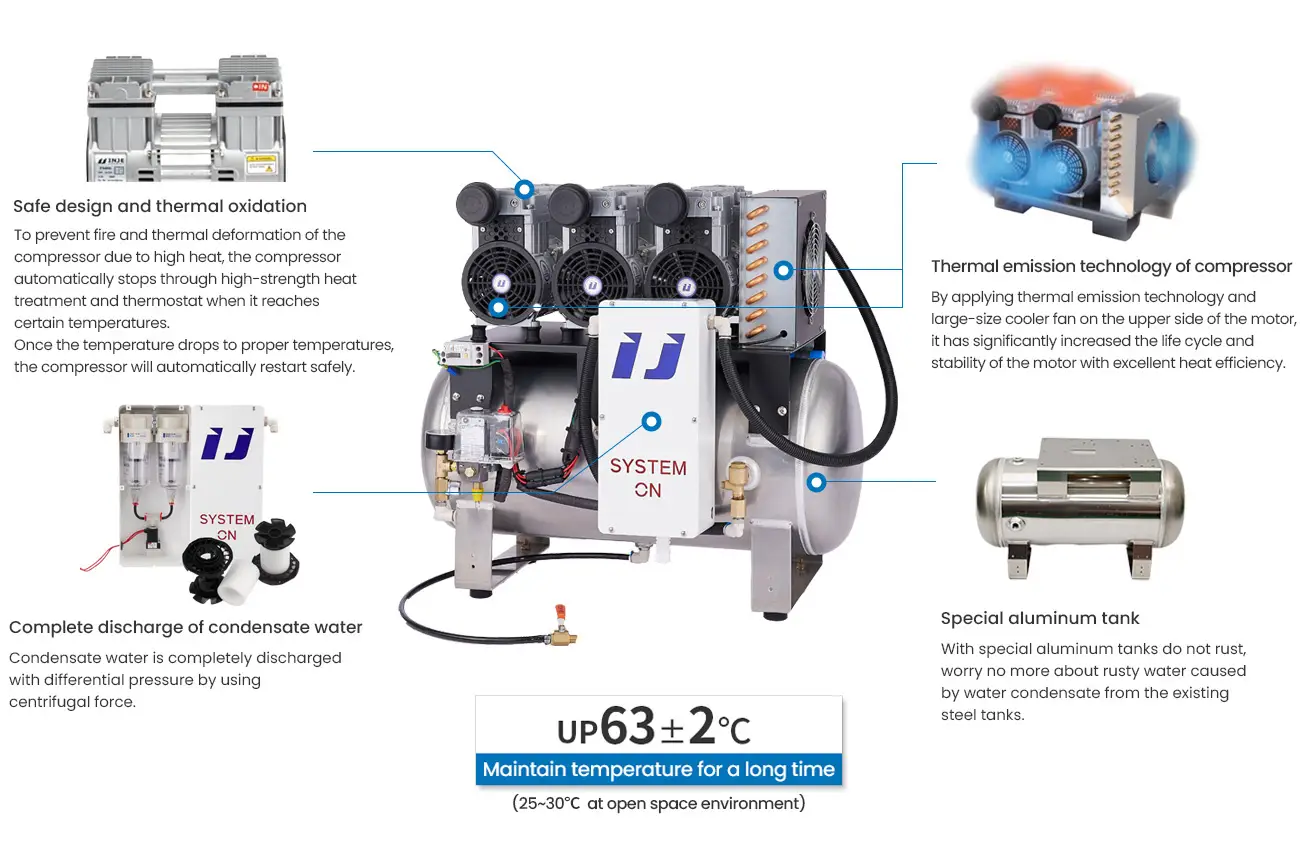

  • The condensate is separated by using the principle of centrifugation and completely discharged by using differential pressure.
  • 5 µm element air filter installed by default
Get a Quote

Why Use an ARBE Compressor?

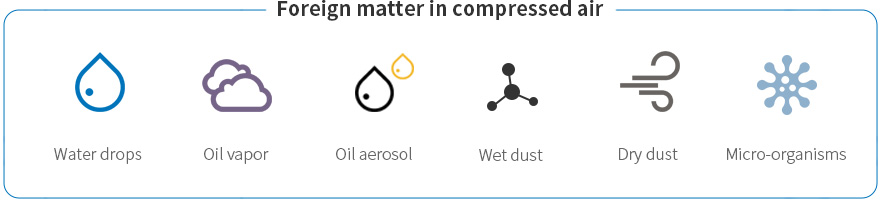

Due to increasing medical accidents, environment pollution, mechanical error, and deterioration caused by foreign matter, the world compressor market requires exhaustive quality in compressed air.

ARBE compressors satisfy ISO 8573-1 international quality standards for compressed air.

High Grade in ISO8573-1

Oil-Free Air Compressor

Removes oil, dust, virus, and moisture with Inje’s excellent technology for providing clean, compressed air

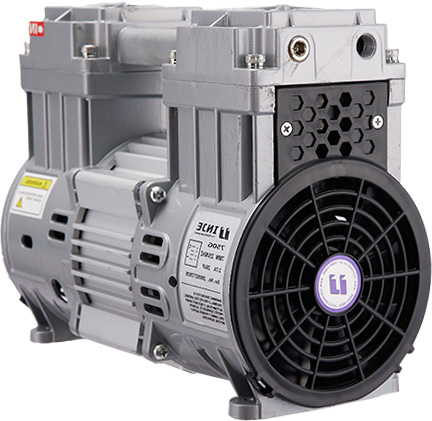

IJ750G

Oil-Free Air Compressor

Compressor Performance Specs

  • Oil-free reciprocating type
  • Air production volume: 165L/min
  • (0.8Mpa=70L/min)
  • Recommended pressure: 6~8bar
  • Maximum pressure: 10bar
  • Rotation speed: 1740rpm
  • Weight: 11.5KG
  • Noise: 65dB
  • Power: 220V 60Hz&50Hz

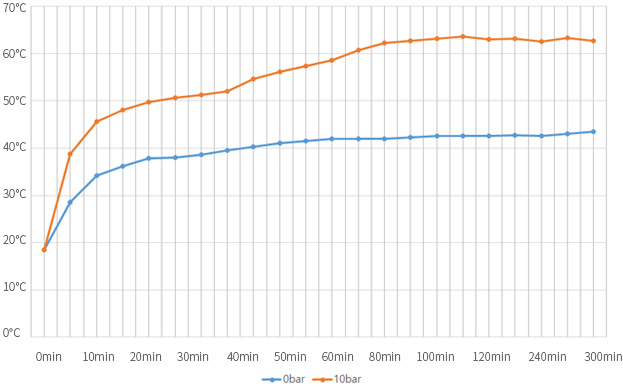

Temperature change depending on operating time (average outside temperature: 30℃)

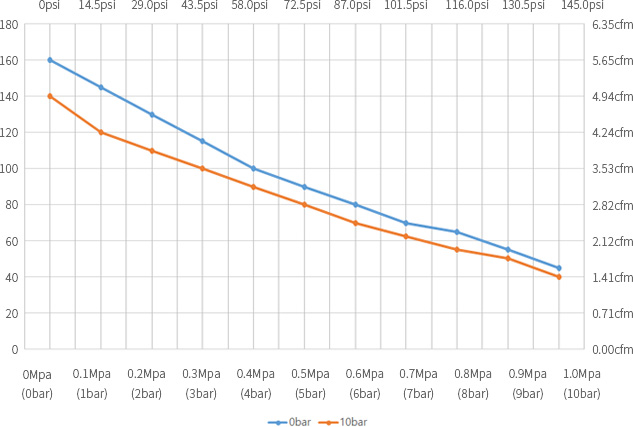

Compressed air production volume

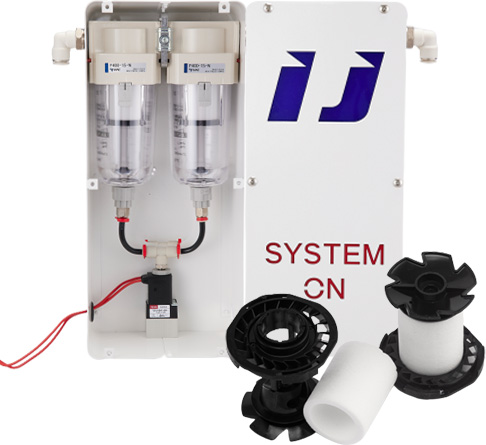

Moisture and Virus Discharging Technology

IJCA-DRY

Remove condensate water and virus with Inje’s patented technology

Characteristics

  • Complete removal of water and oil through double centrifugation
  • The separated contaminants, water, and oil are not stored separately but discharged 100% through differential pressure
  • (the existing auto drain technology required at least a certain amount of contaminants, water, and oil stored to discharge in a slow speed)
  • Risk factors for pollution and propagation of germs are completely removed from the stored water and oil
  • Semi-permanent use of the compressor is possible as discharge through differential pressure increases the longevity of secondary elements

Application Field of Oil-Free Air Compressor

Oil-free air compressor can be applied to medical device, 3D printer, dental chair, factory, and research center.

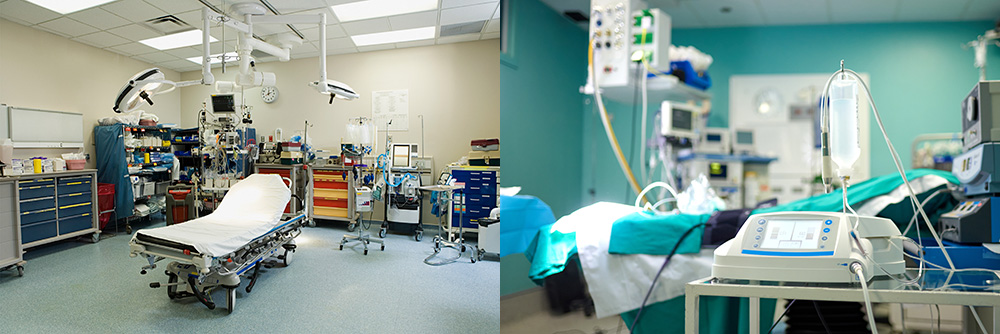

  1. Medical Devices

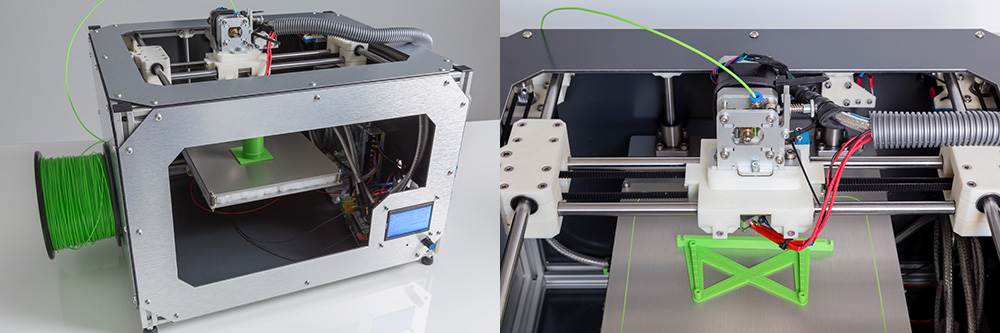

  2.  3D Printer

  3. Dental Chair

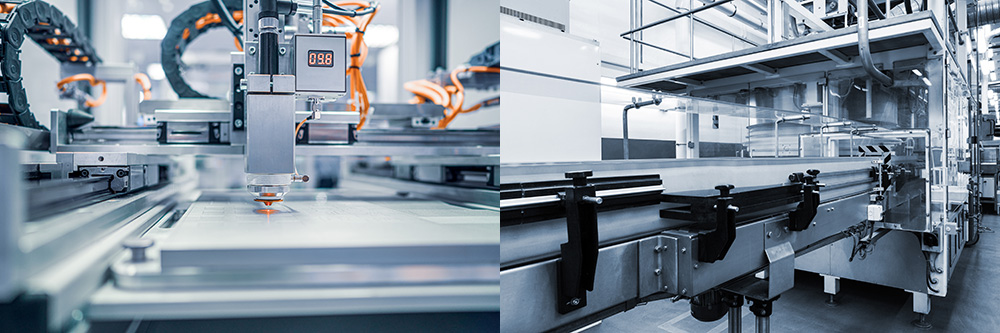

  4. Factory

  5. Research Center

Introduction Video

Our 5 Year Warranty

We Stand by Our Products 100%

If any part of the quiet dental air compressor should become defective within the 5-year warranty period, Arbe Machine will provide the customer with a new replacement part free of charge.

Warranty Details
